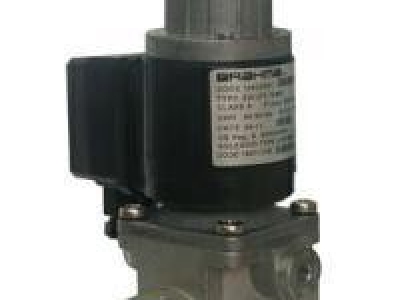

EG12系列燃?xì)怆姶砰y

品牌：Brahma（布拉瑪）

產地：意大利

產品介紹

EG12*LP*GMO燃?xì)怆姶砰y為慢開，帶流量調節，口徑1/2"。流量調節位置在頂部。

型號解析

EG12代表型號

L代表：A->快速打開；S->快速安靜打開；L->慢速安靜打開

P代表：有->側面裝有專用測壓口；無->沒有

G代表：A->交流電供電；C->直流電供電；G->交流電供電，但是線圈是直流電工作

MO代表：FD->電源連接方式使用專用插頭(電氣保護等級IP65)；MO->電源連接方式為接線盒內接線柱連接(電氣保護等級為IP40)

This series of solenoid gas valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current and inclusive of a wire-net filter on the inlet to avoid the entrance of dirt of > 1mm. Gas valves marked with “S” or “L” after reference type have direct current supplied coil, which permitted to make actions as silent as possible.

There is the possibility to have a fast opening or a slow opening valve (obtained by special hydraulic shock-obsorber), with flow adjustment and fast opening initial flow adjustment and inlet pressure plugs (all of them) or outlet plugs (excluding those with flow adjustment).

Gas valves of this series, conforming to EN161, have a CE type Certificate (CE Reg. N° 63AQ0626) in accordance to European Directives 90/396 and 93/68.

型號表

技術參數
