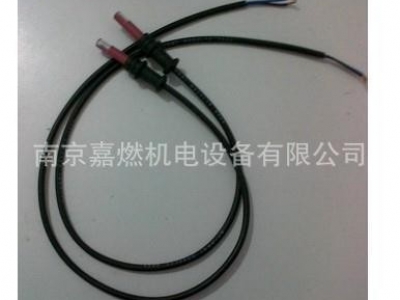

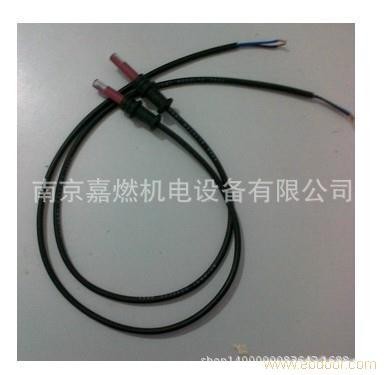

SIEMENS西門子>燃燒器電眼>火焰探測器>QRB1高敏型（棕色）

SIEMENS西門子燃燒器電眼火焰探測器QRB1高敏型（棕色）

  • 產品型號： QRB1高敏型（棕色）
  • 產品描述： SIEMENS西門子燃燒器電眼火焰探測器QRB1高敏型（棕色）
  • 咨詢電話： 025-83704820，83705420

全國服務熱線：

000-000-0000

產品介紹

Photoresistive flame detectors for use with Landis & Staefa burner controls, for the supervision of oil flames in the visible light spectrum. The flame detectors are used primarily in connection with burner controls for small burners.

  • With this type of flame supervision, the radiation of oil flames in the visible light spectrum is used for generating the flame signal.

  • The light-sensitive element is a photoresistor.

  • When there is no light, the detector′s resistance is in the MΩrange.

  • The resistance drops as the intensity of illumination increases (kΩrange).

  • In contrast to the selenium photocell of the RAR... detectors, glowing firebrick in the combustion chamber can be detected.

技術參數

保護等級IP40
當連接至LOA.../LAL...時，電纜長度1.5m最大
連接電纜2*0.75mm2,5.1mm直徑
重量20...35g

環境條件

運輸環境IEC 60 721-3-2
內部條件class 2K2
溫度范圍-20...+60oC
濕度<95%
運行環境IEC 60 721-3-3
內部條件class 3K5
機械條件class 3M2
溫度范圍-20...+60oC
濕度<95%
不得進水
