Technical data
Operating voltage DC 5 V
Power consumption<50 mW (typically)
Degree of protection
- AZL21…
IP40 to IEC529

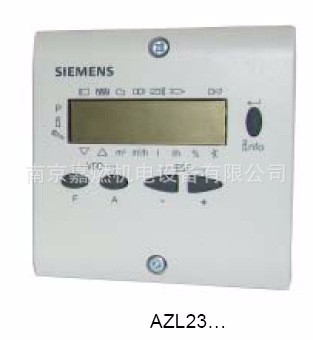

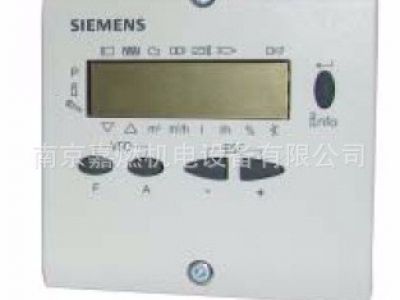

- AZL23…
- Rear
- Front
IP40 to IEC529
IP54 to IEC529 when mounted
Safety class II to DIN EN 60730-1
Housing
- Material
- Color
PC and PC / ABS
RAL 7035 (light-grey)
Flame protection class
- Transparent housing parts
- Colored housing parts
To UL94 V2 (PC)
To UL94 V0 (PC / ABS)
Weight
- AZL21…
- AZL23…
Approx. 85 g
Approx. 120 g
Degree of contamination 2
Signal cable Color white
Unshielded
Conductor 4 x 0.141 mm2
With connector RJ11
Cable length
- AGV50.100
- AGV50.330
1 m
3 m
Order number: T11721004
Location Under the burner hood (arrangements for
SKII EN60730-1 additional required)
For permissible length of cable, refer to the Data Sheet of the relevant type of burner
control.
BCI interface with RJ11 female For Siemens burner controls
Storage DIN EN 60721-3-1
Climatic conditions Class 1K3
Mechanical conditions Class 1M2
Temperature range -20...+60 °C
Humidity<95 % r.h.
Transport DIN EN 60721-3-2
Climatic conditions Class 2K3
Mechanical conditions Class 2M2
Temperature range -30...+60 °C
Humidity<95 % r.h.
Operation DIN EN 60721-3-3
Climatic conditions Class 3K3
Mechanical conditions Class 3M3
Temperature range -20...+60 °C
Humidity<95 % r.h.
Condensation, formation of ice and ingress of water are not permitted!
